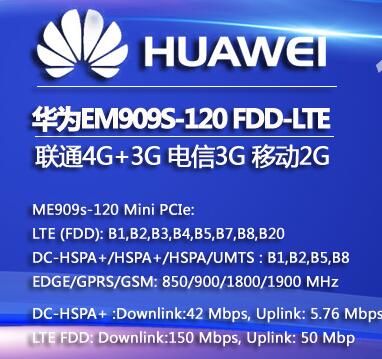

Huawei ME909s-120 LTE FDD/DC-HSPA+/UMTS/EDGE Mini-PCIe 3G/4G Wireless Module
Product Description:
Mini-PCIe
- Bands
ME909s-120 Mini PCIe:
LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20
DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8
EDGE/GPRS/GSM: 850/900/1800/1900 MHz
- Data Transfer Rate
DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps
LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)
- Interface
Mini PCIe interface
Antenna interface
USB 2.0 High speed
PCM Voice
SIM Card
LED
Power supply
Reset
- Power Supply
3.2 V to 4.2 V (3.8 V recommended)
- Temp Range
-40℃ to 85℃
- Voice
PCM Voice
DTMF
- Special Features
CDC-ECM
FOTA
Firmware Update via USB
Embedded UDP/TCP/FTP(s)/HTTP(s) stack
High-speed UART
CMUX
Sleep mode
- Operating System
Linux, Android, WinCE, Windows 8/10
- Approvals
CE
GCF
RoHS & WEEE Compliant
|
